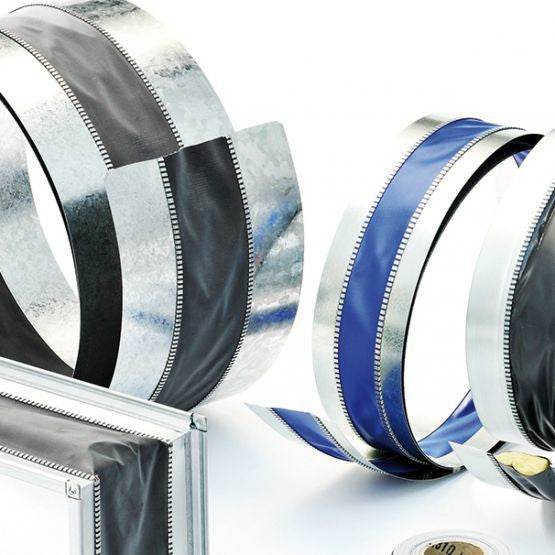

Flexible connecting tape SILICON, Climatech SI

Climatech flexible connection strip or "rag flange"

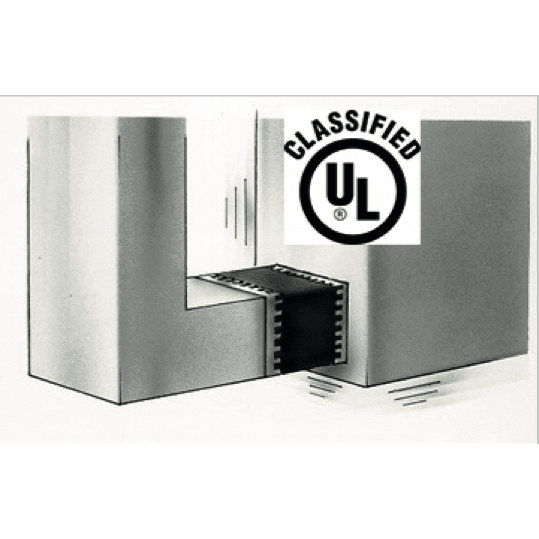

Climatech SI is a connection strip for making flexible connections, e.g. connecting machines to ductwork. The connecting tape dampens the resonance caused by the machine being carried over to other parts of the ductwork.

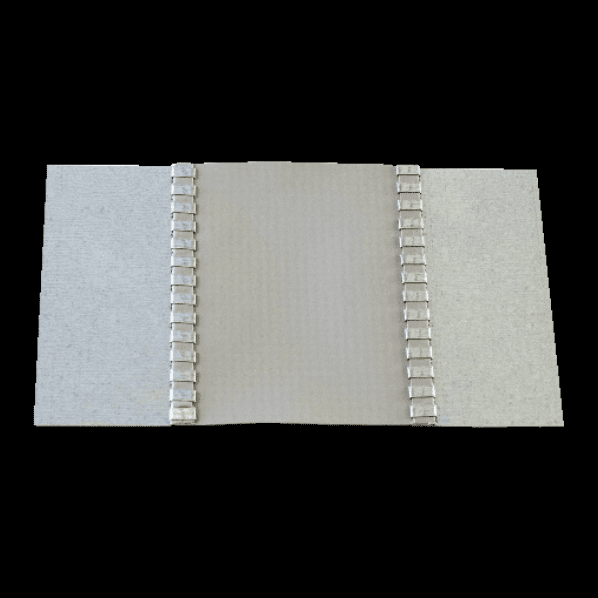

The joint strip consists of sheet metal flanges joined together and fabric. It is available in different sizes and materials, depending on the need for use. The delivery unit is a 25 m roll.

Flange:

• Width 45 mm
• Galvanized steel
• Thickness: 0.4 mm


Fabric: SI

• Width 75 mm
• Fiberglass fabric coated on both sides with silicone
• Color: Grey
• Weight: 520 g/m2
• Operating temperature: -50 °C to +280 °C
• Excellent temperature resistance - UL tested to NFPA 701
• M1 rated
